Eagle Core Development Kit 320x240, 30Hz, 24° FOV

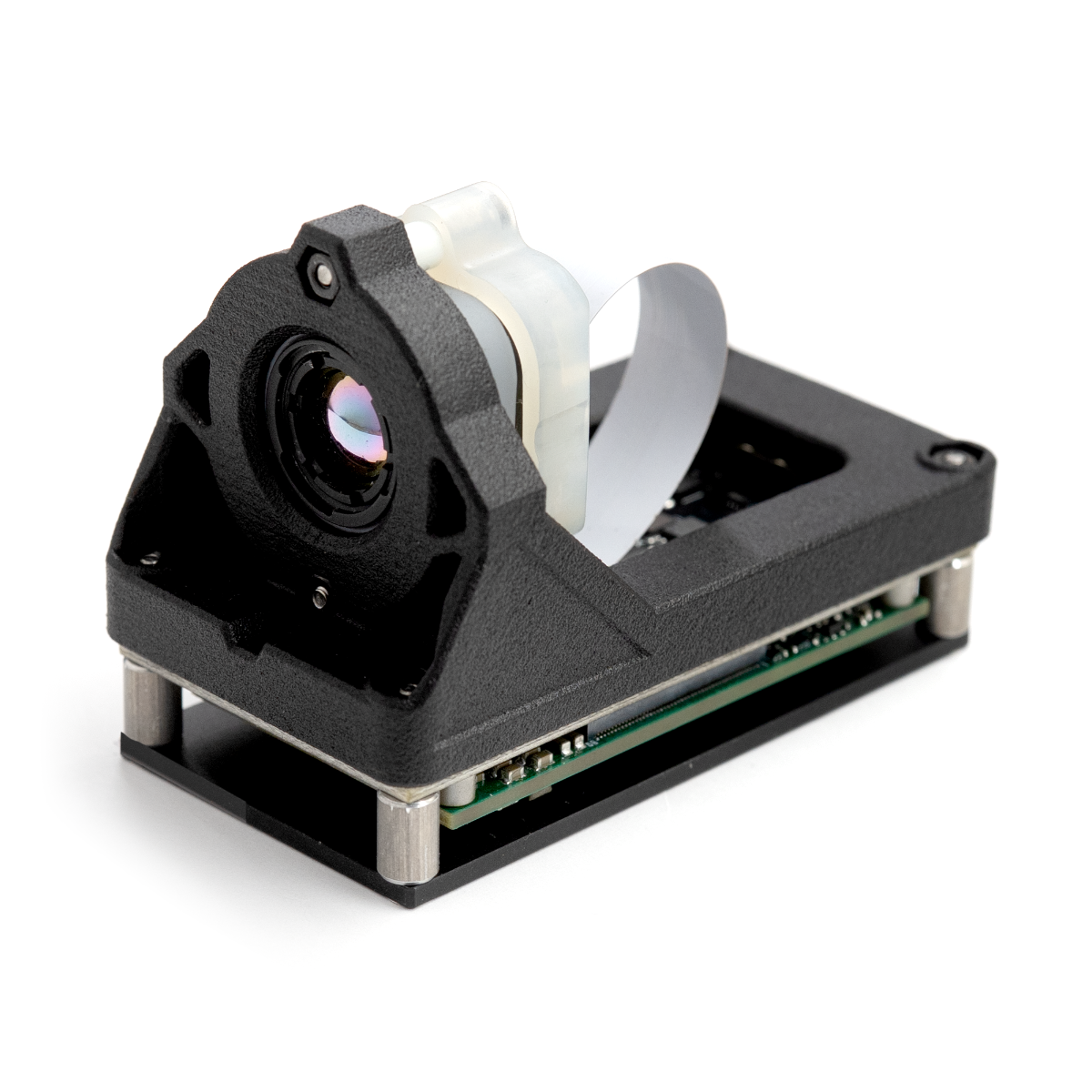

Eagle Core Development Kits provide everything you need to start integrating Seek Thermal's latest-generation thermal imaging core into your product. This kit includes the Eagle Core 300 configured at 320x240 resolution, 30Hz frame rate, and a 24° horizontal field of view — ready for evaluation and rapid prototyping.

Eagle Core delivers a significant leap over previous-generation cores — with 2x the thermal sensitivity and half the noise. Designed and manufactured in the United States, it maintains the same compact form factor and lens/housing compatibility as earlier generation cores, making it a straightforward upgrade for existing OEM designs.

Communication is supported through the Seek Thermal SDK, MIPI CSI-2, and I2C interfaces. Integration documentation can be found at developer.thermal.com.

Key Specs:

• Sensor Resolution: 320 x 240
• Frame Rate: 30Hz
• Horizontal FOV: 24°
• Pixel Pitch: 12 µm
• Interfaces: MIPI CSI-2, I2C
• Power: 300 mW
• Core Dimensions: 20 x 20 x 21mm

Development Kits require the Seek Thermal SDK to operate. The SDK is available free of charge through the Seek Thermal Developer Portal after creating a developer account.

Seek Thermal Development Kits are intended solely for prototype evaluation. They may not be resold or incorporated into any product intended for resale. Any product intended for resale must use production OEM cores purchased from Seek Thermal. Development Kits are subject to U.S. Export Administration Regulations (EAR), and purchasers are responsible for complying with all applicable export control requirements. Any use in military applications, including integration into military products or systems, requires prior written authorization from Seek Thermal.
