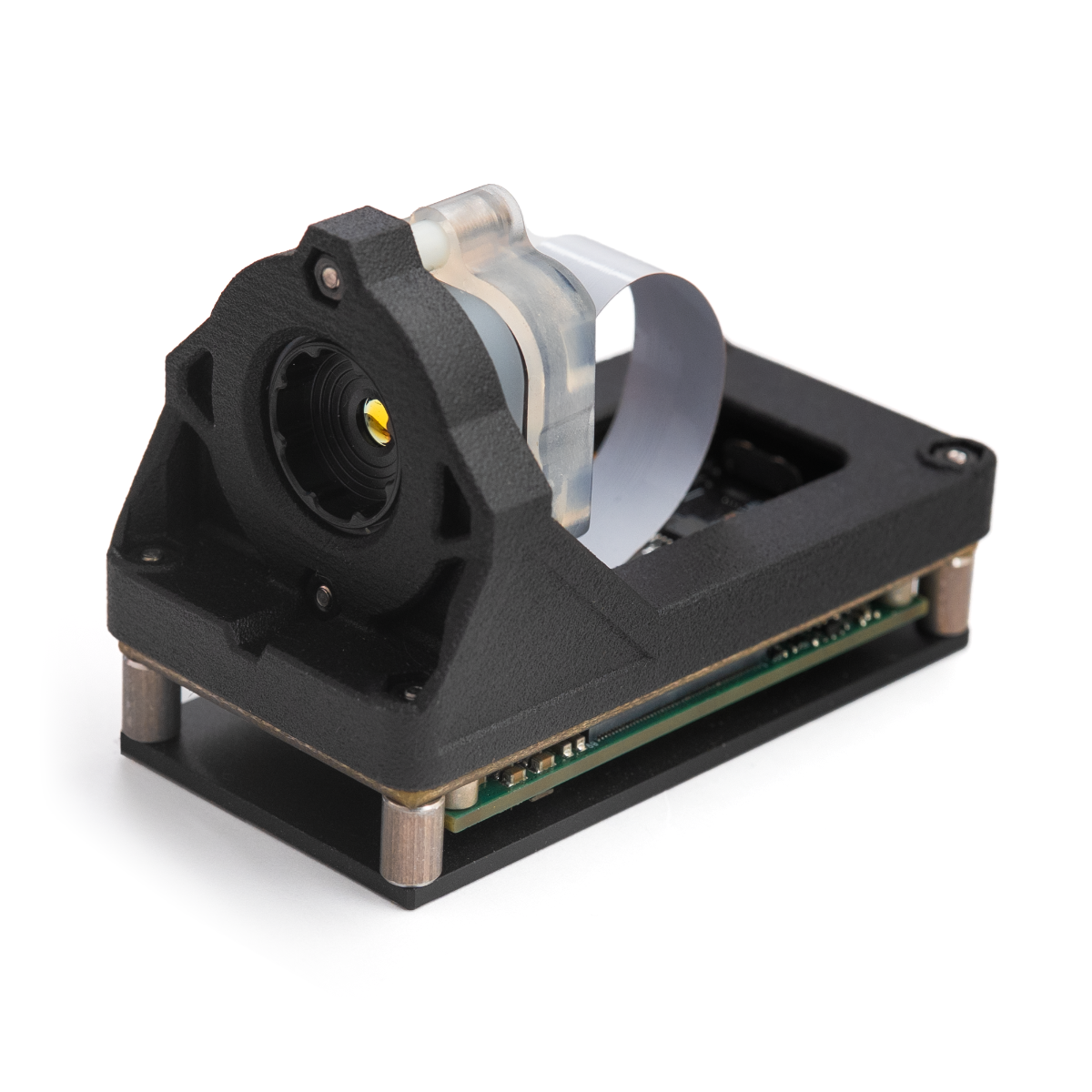

Eagle Core Development Kit 320x240, 30Hz, 56° FOV

Eagle Core Development Kits provide everything you need to start integrating Seek Thermal's latest-generation thermal imaging core into your product. This kit includes the Eagle Core 300 configured at 320x240 resolution, 30Hz frame rate, and a 56° horizontal field of view — ready for evaluation and rapid prototyping.

Eagle Core delivers a significant leap over previous-generation cores — with 2x the thermal sensitivity and half the noise. Designed and manufactured in the United States, it maintains the same compact form factor and lens/housing compatibility as earlier generation cores, making it a straightforward upgrade for existing OEM designs. Integration is further simplified through support for the Seek Thermal SDK, MIPI CSI-2, and I2C interfaces.

Key Specs:

• Sensor Resolution: 320 x 240
• Frame Rate: 30Hz
• Horizontal FOV: 56°
• Pixel Pitch: 12 µm
• Interfaces: MIPI CSI-2, I2C
• Power: 300 mW (Max)
• Core Dimensions: 23 x 20 x 21mm
